Product Features

Estimated Electricity Generation:  600kwh/yr. by using 300Watt from Solar Panels (ave. saving of 7.5% of electric bills for an average home), 1200kwh/yr. by using 600Watt  (average 15% of electric bills for an average home), 1600kwh/yr. by using 800Watt  (average 20% of electric bills for an average home).

Do It Yourself:  No wiring is needed & no battery is required; everything is configured. Very easy installation and can be done in an hour.

Product Includes:

1. Two or Four solar panels (made of high efficiency mono-crystalline PV cells). 200W Solar Panel size is 4.4ft x2.2ft. You may add two more solar panels to increase power generation.

2. 800-watt Micro-Inverter (Sufficient for up to 4 solar panels). It is  UL 1741 code compliant for anti-islanding safety protection, as per requirements.

3. 50 ft wire - ready to be plugged into a wall socket of 110/120V.

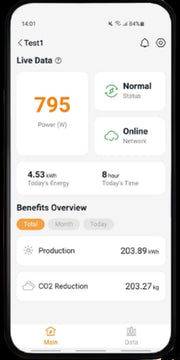

4. Plug-in Wi-Fi Power Monitor for tracking solar power generation.

5. Mounting hardware as required for the selection of purchase ( ground mount or roof mount, & 2 panels or 4 panels).

Two Steps Installation:

1. Connect one solar panel's positive cord (red '+') to another solar panel's negative cord (Black '-'). In the same order you can connect two more panels according to the selection of  the purchase. Then, connect the very first solar panel's negative cord (Black '-') to the micro-inverter and second or the last solar panel's positive cord (Red '+') to the inverter. Please see the diagram.

2. Place solar panels facing sun and plug the cord into 110/120V wall socket along with supplied Wi-Fi power monitor. Wait for 6 minutes for inverter to start and you will see power generating in the meter.

How It Works:

When the sun shines, the Solar panel set will produce DC voltage, and the micro grid tie inverter transforms the DC voltage to AC voltage, synchronizing with the utility grid power. It puts out power to the home grid, generating electricity and cutting your electric bill.

Product Features:

• PluggedSolar 1.2/1.5/1.8/3.0 KW Solar Grid Tie Kit makes the sun power within the reach of every homeowner.

• It's patent (pending) technology makes solar installation very easy. Anyone can add solar panel and can simply plug the system into an existing electrical outlet.


• 3000-Watt Solar Grid Tie kit generates 7000 KWH of electricity (average) per year for life, saving up to 70% of electric bill removing the high tiered rated usage.

How to Install:

Attach Solar Panels on roof or on ground rack and plug the electric cord into the wall socket. No wiring is needed. No battery is needed.

Components Included:

• 1200(4 panels) 1500 (5 panels) / 1800 (6 panels) / 3000(10 panels) Watts Solar Panels:  These panels have high photovoltaic efficiency due to the advance technology.


• Inverters: They are 97% efficient with UL-1741/CSE/IEEE compliance.


• Roof/Ground/Patio Solar Panel Mounting Frames


 For 3000Watt, please make sure that the breaker is 20amp.Most homes do have 20amp by default. You may email us for details.

Warranty

• We provide 5 years of warranty on the system

• 25 years of warranty on solar panel (by the manufacturer)

• 10 years of warranty on inverter (by the manufacturers).

• We guarantee satisfaction on every product we sell with a full refund within 30 days of receiving the shipment.

Product Features

• 5KW Solar Power System is an innovative and affordable solar energy product which is designed to meet an average household electric need and at the same time help the environment.


• This system has an output voltage of 220/240V (AC). So, you can plug the system to any electrical 220/240V outlet (similar as used for electric dryer or any 220V outlet). This makes the system 'plug-and-play' and easy to install.


• This system works same as any of our other grid tie system interacting with the existing utility grid, feeding excess energy back onto the grid, and spinning the meter backwards.

• This system meets the federal standards for grid inter-connectivity

Easy Installation:

       Do It Yourself or, get help by an electrician.

Components Included:

• 5KW Grid-tie Inverter


• Micro-Inverter (Optional):  We can provide you micro-inverter instead of one central inverter. Micro-inverter is attached to each solar panel and provides solar panel level power monitoring. We will provide micro-inverter made by Enphase or APS Systems. They are manufactured in USA.

• Solar Panel Mounting: Unirac Solar Mount, a top-rated renowned solar racking manufacturer.

• Inverter Power Monitor:  Wi-Fi enabled for direct access via smartphone.

• 5 KW of solar Panels:  High efficiency top rated solar panels from mega manufacturers. Typically, they are manufactured in USA.

• Wires & AC Disconnects: Sqaure-D DU221RB AC Disconnect, NEMA3R, 30A 240VAC, 2-Pole Unfused - 240V AC 30Amp Plug

             All the items are approved by the Utilities for solar installation

Warranty

•  We provide 5 years of warranty on the system

• 25 years of warranty on solar panel (by the manufacturer)

• 10 years of warranty on inverter (by the manufacturers).

• We guarantee satisfaction on every product we sell with a full refund within 30 days of receiving the shipment.

Benefit:

        Get 30% Federal Tax Credit back.

PRODUCT FEATURES:

• The Expandable 1.8KW Solar Grid-tie Kit is an innovative and affordable solar energy solution for the homeowners who wants to save money on energy bills and at the same time save the environment.

• It also interacts with the existing utility grid, feeding excess energy back onto the grid, and spinning meter backward similar like any of PluggedSolar Grid-tie kit.


• It can be expanded up to 5KW Solar Power System to meet an average household energy need.

• It includes everything required for installing a 5KW system except the solar panels that you need to add on. No extra wiring is needed for that.


• It has an output voltage of 220/240V alternating current (AC) making the system 'plug-and-play', plugging into the similar outlet as used for a dishwasher or an electric dryer.


• It meets the federal standards for grid inter-connectivity.

IT INCLUDES:

• 1.8 KW of SOLAR PANELS:  5 pieces of Solar Panels with the range of  360Watts, size - 6.5ft x 3.5ft usually,  availed from top 10 manufacturers, option of adding more solar panels

• 5KW GRID TIE INVERTER


• SOLAR PANEL MOUNTING: Unirac SolarMount for roof, ground or patio

• WIRES: 240V AC 30Amp Plug

             All the items are approved by Utilities.

WARRANTY

• We provide 5 years of warranty on the system

• 25 years of warranty on solar panel by the manufacturer

• 10 years of warranty on inverter by the manufacturers

BENIFITS:

• Try out with lower upfront payment initially and add on later as per need

• Qualifies for 30% federal tax credit. You get 30% back when you file taxes.

• Can be installed easily

• We guarantee satisfaction on every product. We sell with a full refund within 30 days of receiving the shipment.

Product Documents: Expandable 5KW PluggedSolar Manual
